Planning Monitoring Rounds

A Monitoring Round Plan consists of a number of expandable panels describing the various aspects of a Round.

The Monitoring Round Plan Info has the Project, Site(s), Start and End Date, Scheduled Date (if applicable), who the Round is assigned to (and by), and comments.

The Field Parameters and Instructions section contains information about the field chemistry and other parameters to be collected during the fieldwork.

The Field Profile configuration to be used for this monitoring is specified.  Users are able to refine a subset of field parameters as well as specific expected min and max values for this monitoring. Specific Field Instructions can be entered and Docuents related to the Monitoring, such as SOPs, Safety Plans, or other documentation can be linked to or loaded.

clip0576

The Locations to be Visited can be specified, and given specific dates and assigned to different field staff if applicable.

clip0579

Sample submission for up to two Laboratories (the primary and the secondary) can be defined for a Monitoring Round.  The Laboratories and the Quote Numbers will need to have been previously entered into the Laboratories section of LSPECS.   Other information that is typically included on Laboratory Chain of Custody documents such as the Purchase Order and Turnaround Times is also entered.  In place of a Turnaround Time a “Required By” date can be entered if that is more applicable.

clip0580

The Primary and Secondary Lab Samples sections are identical, except that the Analyses and Containers listed will reflect the respective Laboratories.

The panel is composed of three main sections:  Samples, Analyses and Containers.  Sample and Container details are collapsed and more details can be viewed by clicking the >> buttons.  Once expanded, this data can be hidden again by clicking the << button.

clip0581

Samples can be added by clicking the Add button or the Generate button.  Generate will create a Sample for every Location Visit in the previous panel, while Add can be used to add just a single Sample.  Typically Generate will be used initially, and Add will be used to add additional samples, such as QA Samples.

clip0582

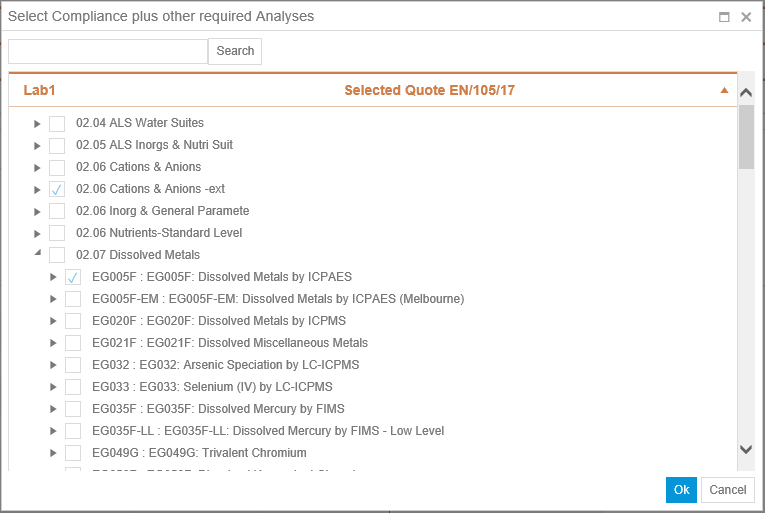

Analyses can be added from the selected quote.    Analyses can also be selected from a Blanket/Standard quote for the same laboratory (if available) as well as from your Internal List (if you have one).

Containers can be added by clicking the Add button or the Generate button.  The Generate button will use the container information in the Quote to automatically populate the containers based on the selected Analyses.  The Add button can be used to add additional containers either from the Quote, or from your Generic/Internal List (if you have one).

clip0588
